CabinetShop 43 512-10 and 510-8

Affordable Precision:  The Model 43 is your go-to solution for high-performance three-axis CNC routing.  There are three versions of the Model 43 - each including multiple premium features rarely found in this price range. All this, packaged in a sleek design with a manageable footprint and a very affordable price.

Cabinetshop 43 Info Request

Overview

The CabinetShop 43 is a high-performance Three Axis CNC router ideal for machining plastic sheets, nested-based custom cabinets, custom furniture, nonferrous metals and more.

CabinetShop 43 Features:

  • Available Table Sizes: 4'x8', 5'x10', 5'x12' and 5'x20'
    510-8 (5'x8' table with 21 tooling positions & dual pipe dust collection on 5'x10' base)
    512-10 (5'x10' table with 21 tooling positions & dual pipe dust collection on 5'x12' base)
  • Speed: Indexes at 2,800 IPM Standard
  • 13 HP HSD Spindle (3,000-24,000 RPM) Standard

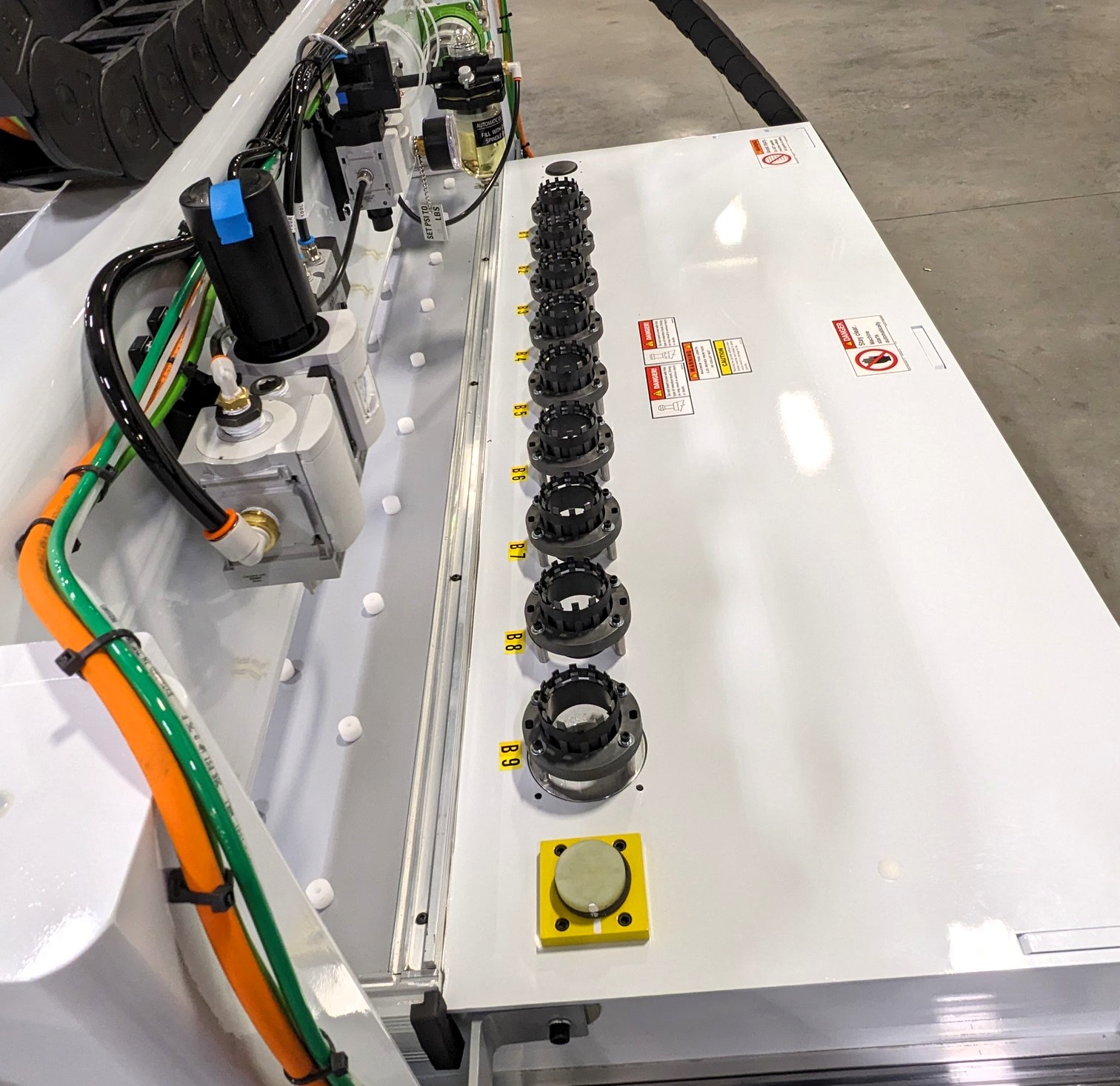

  • 11 Position Bar Style Automatic Tool Changer Standard
  • 21 Position Bar Style Automatic Tool Changer Optional
  • Fixed Steel High Flow Table with Moving Gantry Standard
  • Universal Vacuum 1 or 2 Zone(s) Standard

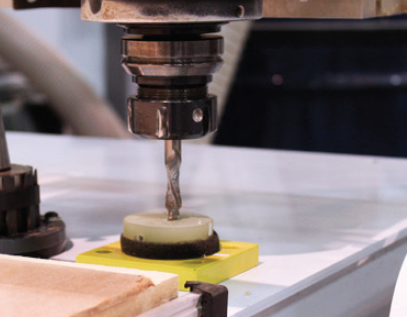

  • Automatic Tool Length Sensor Standard
  • Automatic Pop-Up Pins Standard

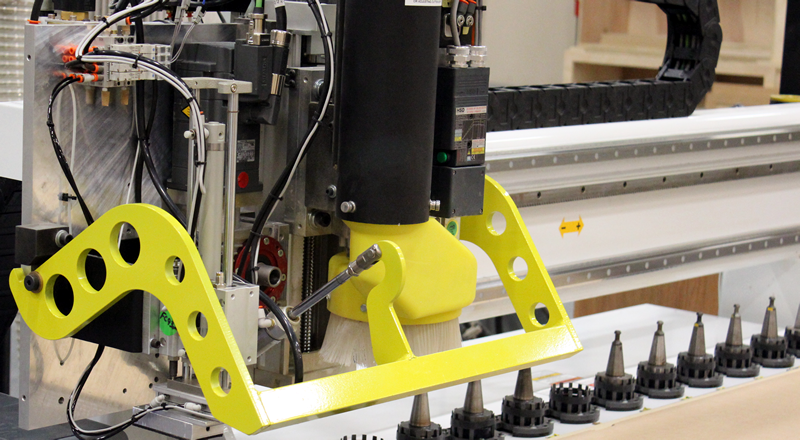

  • Unload Rake System Optional
  • Full Table Rake w/Integrated Dust Collection Optional (on the 43 510-8 and 512-10 models)
  • Automatic Labeling System Optional
  • Personal Pause Fob Optional
  • Pause Mats Optional
  • Automatic Labeler Optional
  • Customized Accent Colors Optional
  • Automatic Lubrication System Optional
  • Three-Dimensional Laser Compensated Axis Alignment Standard
  • Control Nesting Standard
  • Siemens Intelligent Servo Drives Throughout Standard
  • Machine Training and Installation Standard
  • Free Phone and Forum Support Standard
