The ultimate heavy-duty, high-clearance 5 Axis CNC router designed for machining large and extremely large complex three-dimensional components.



MAX5 Info Request

MAX5 15'x45' - Heavy Duty, High Clearance 5 Axis CNC Router (as shown)

Max5

Heavy-Duty, High-Clearance 5 Axis CNC Router

Download

Explore the MAX5

Engineered for industries that demand size, strength, and precision, the Thermwood MAX5 is your go-to solution for the three-dimensional machining of large to extremely large components. Whether you're shaping massive molds, marine components, or complex construction or aerospace elements, the MAX5 delivers unmatched power, accuracy, and durability. Built to perform in the most demanding environments, the MAX5 sets a new standard for high-performance CNC machining.

KEY FEATURES

  • 9' Vertical Z Axis

  • Width 10' or 15' - Lengths up to 60'

  • 17 HP Liquid-Cooled Spindle

  • 6-Position Automatic Tool Changer (Standard) or expandable up to 18 Tooling Positions

  • Automatic High-Tolerance Tool Length & Diameter Measurement

  • Automatic Lubrication System

  • Thermwood SuperControl with Smart Router Technology

  • Machine Indexing Speeds up to 2,100 IPM

  • Engineered Steel Vertical Support Columns and Stress-Relieved Gantry Weldments

  • Precision-Machined Steel Plates & Internal Steel Bracing

  • Optional Floating Work Table with Drilled and Tapped Aluminum Surface

  • Machine Training and Installation

  • Free Lifetime Phone, Forum, and Email Support

  • Lifetime Machine Support from Thermwood’s Legendary Service and Support

MAX5 15'x45' 5 Axis High Wall CNC Router Shown Above
MAX5 15'x45' 5 Axis High Wall CNC Router Shown Above
Thermwood MAX5 15'x45' profile view

Thermwood MAX5 15'x45' profile view

The MAX5 is equipped with a six position automatic tool changer as standard or with optional 12 tooling positions as shown, conveniently mounted under the gantry for quick and efficient tool swaps, handling tools up to 4" in diameter. 15' wide models can also have up to 18 tooling positions.
The MAX5 is equipped with a six position automatic tool changer as standard or with optional 12 tooling positions as shown, conveniently mounted under the gantry for quick and efficient tool swaps, handling tools up to 4" in diameter. 15' wide models can also have up to 18 tooling positions.
The MAX5 is the ultimate heavy-duty, high-clearance 5 Axis CNC router designed for machining large and complex three-dimensional components.
The MAX5 is the ultimate heavy-duty, high-clearance 5 Axis CNC router designed for machining large and complex three-dimensional components.
The MAX5 features a 17 HP Liquid-Cooled Spindle
The MAX5 features a 17 HP Liquid-Cooled Spindle
The MAX5 features a high tolerance tool length sensor to automatically measure both the length and diameter of your tools and update the control system with the precise offset numbers.
The MAX5 features a high tolerance tool length sensor to automatically measure both the length and diameter of your tools and update the control system with the precise offset numbers.
The MAX5 features a standard 17 horsepower liquid-cooled spindle with a one hundred and 8" Z axis. High-performance servo drives provide rapid acceleration, deceleration, and multi-axis feed speeds up to 2,100 inches per minute.
The MAX5 features a standard 17 horsepower liquid-cooled spindle with a one hundred and 8" Z axis. High-performance servo drives provide rapid acceleration, deceleration, and multi-axis feed speeds up to 2,100 inches per minute.
MAX5 15'x45' 5 Axis High Wall CNC Router Shown Above
MAX5 15'x45' 5 Axis High Wall CNC Router Shown Above


Performance-Focused

The MAX5 is a heavy-duty, high-clearance 5-axis CNC router designed for uncompromising large-scale machining.
The MAX5 leverages advanced 3D modeling and Finite Element Analysis (FEA) to optimize structural integrity and performance. The MAX5’s massive vertical support columns and gantry are fully stress-relieved delivering rock solid stability and precision – even during demanding multi-axis operations.

With Thermwood as your single source partner, you get more than just a machine – you get complete system accountability and seamless support from one trusted expert.

Every element is developed and integrated in-house, you benefit from unmatched efficiency, streamlined service, and total peace of mind. And as new technologies evolve, Thermwood systems are built to evolve with them — making upgrades simple and ensuring your investment stays ahead of the curve.

MAX5 Info Request

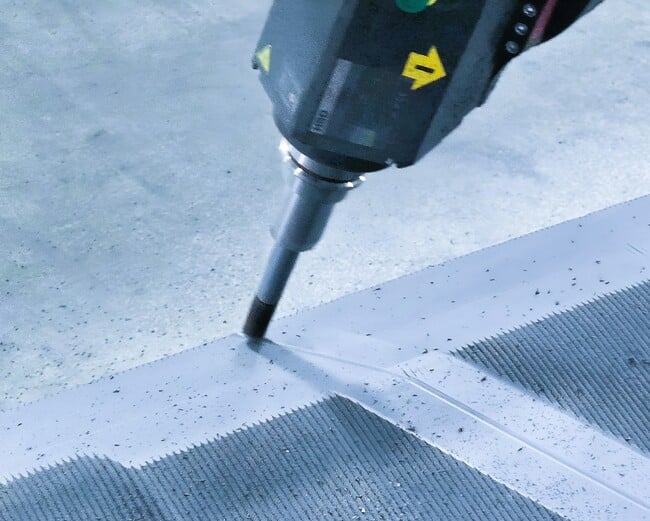

Max5 15'x45' trimming polycarbonate


About Thermwood

Thermwood pioneered CNC router technology in the United States, becoming the first company to design and manufacture these systems. Since the late 1960s, Thermwood has led the industry though continuous innovation – delivering advanced machining and software solutions across the woodworking, plastics, and aerospace sectors.

In addition to its expertise in CNC machining, Thermwood has been the technology leader in Large Scale Additive Manufacturing (LSAM) since 2018.  LSAM systems are capable of both 3D printing and trimming on a single platform, enabling the production of thermoplastic composite molds, tooling, patterns, and parts. These state-of-the-art systems rank among the largest and most capable additive manufacturing solutions ever produced, serving industries such as aerospace, marine, automotive, and foundry, as well as military, government, and defense contractors.

Operating from its 175,000-square-foot headquarters in Dale, Indiana, Thermwood combines its corporate offices, customer showroom, and state of the art engineering and manufacturing facility under one roof –for seamless end-to-end workflow from design to full system production. Every stage is executed with exacting precision and cutting-edge processes. As a globally recognized leader, Thermwood is committed to advancing technology, software, service, and support, continually evolving to meet the changing needs of its customers.

Thermwood — The Leader in CNC Routers and Large Scale Additive Manufacturing Systems.

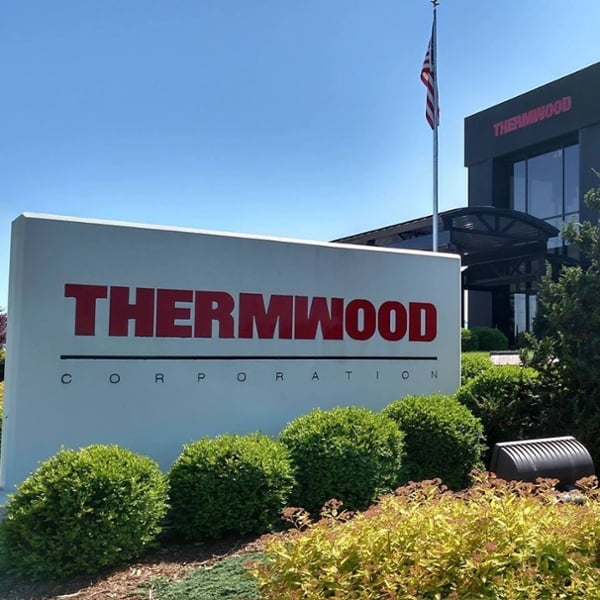

Thermwood headquarters in Dale, IN
