FrameBuilder 53

Precision and Durability:  The FrameBuilder 53 is the perfect choice for boosting production efficiency and precision. With its powerful 18 HP router, high-speed feed rates, and versatile programmable features like a roller hold down system and automatic tool changer, it ensures accurate machining of low-profile sheet materials.

FrameBuilder 53 Info Request

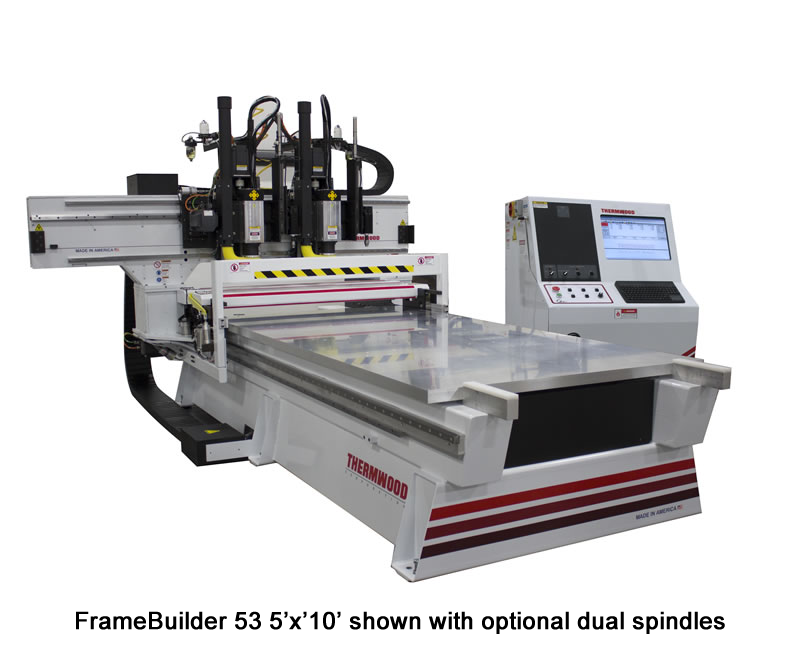

Thermwood 3 Axis FrameBuilder 53 5'x10' quick walkaround tour

Overview

The FrameBuilder 53 is a 5'x10' CNC router designed to take your production process to the next level. Perfect for machining nested upholstered frame parts from sheet stock

FrameBuilder 53 Features:

  • Available Table Sizes: 5'x10' (1.5m x 3.0m), 5'x12' (1.5mx3.6m), 5'x16' (1.5mx4.8m), 5'x20' (1.5mx6.0m)
  • Speed: Indexes at 3,000 IPM Standard
  • 18 HP HSD Spindle (3,000-24,000 RPM) Standard
  • Roller Hold Down System Standard
  • Fixed Solid Aluminum Table with Moving Gantry Standard
  • Automatic Lubrication Optional
  • Automatic Tool Length Measurement Optional
  • Additional 18 HP Spindle Optional
  • Pause Mats Optional
  • Automatic Labeler Optional
  • Pop up Pins Optional
  • Automatic Lubrication System Optional
  • Electric Drill Optional
  • Programmable Head Spacing (when equipped with 2nd spindle - from 24" to 36") Optional
  • 6,000 lb Lift Table Optional
  • Pause Mats Optional
  • Three-Dimensional Laser Compensated Axis Alignment Standard
  • Control Nesting Standard
  • Siemens Intelligent Servo Drives Throughout Standard
  • Machine Training and Installation Standard
  • Free Phone and Forum Support Standard
