Model 63 5'x40' CNC

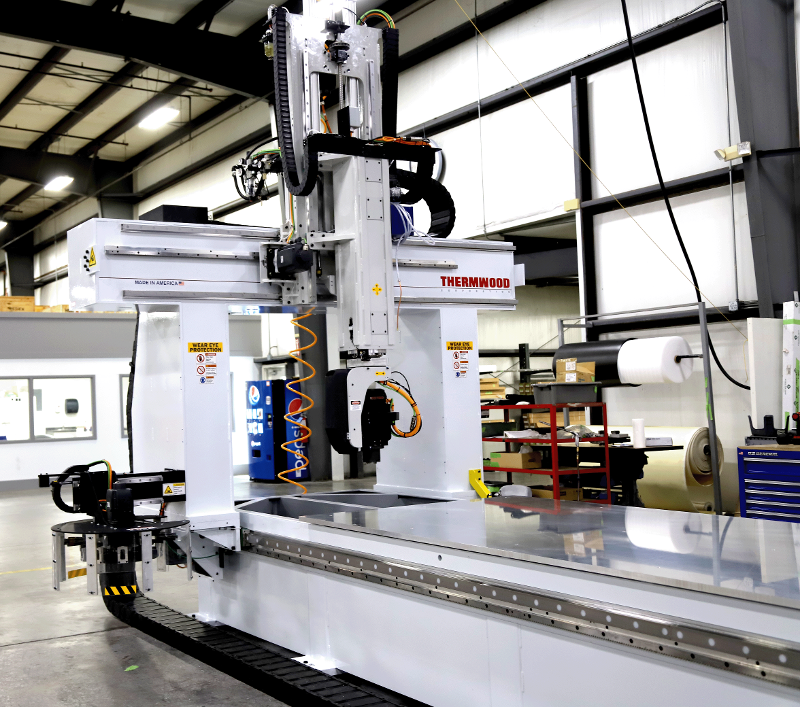

The Model 63 is a large bed CNC router with a moving bridge and stationary 1-inch thick stress-relieved aluminum plate table.

It is available in both three and five axis configurations.

Overview

The Model 63 is a large bed CNC router with moving bridge & stationary table designed for two and three dimensional machining of large composite parts & three dimensional patterns. It is available in either a three or five axis configuration
Available Table Sizes: 5'x10' (1.5m x 3.0m), 5'x20' (1.5mx6.0m), 5'x40' (1.5mx12.0m), Table Extensions available up to 100' (18m)

Features

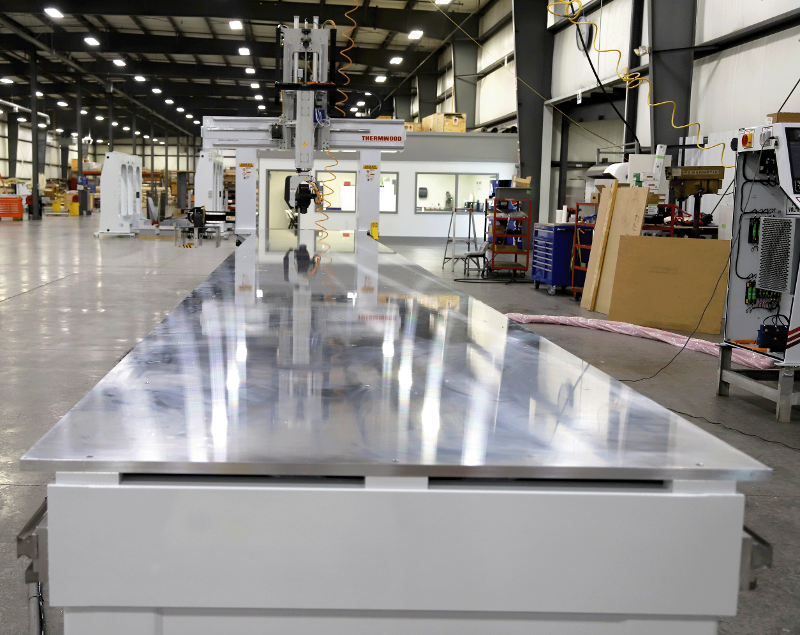

1" Thick Fixed Stress-relieved Aluminum Plate Table

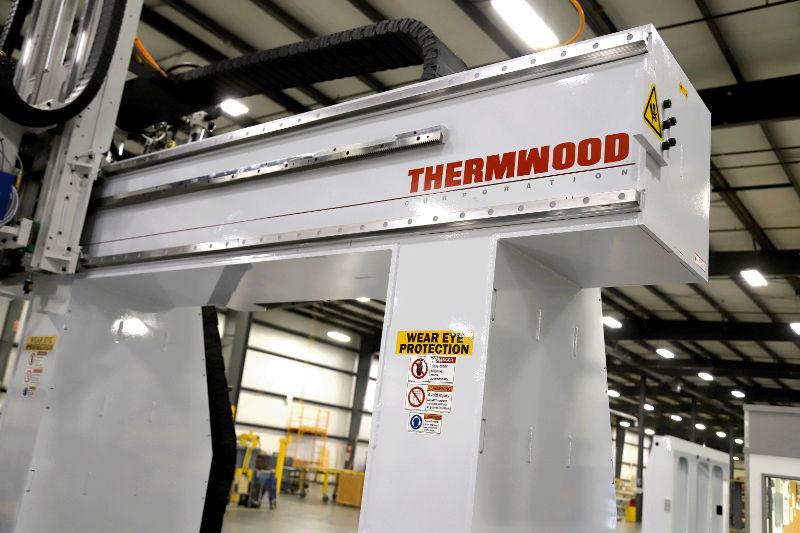

Moving Gantry
36" Z Axis
40 HP 24,000 RPM Variable Speed Router

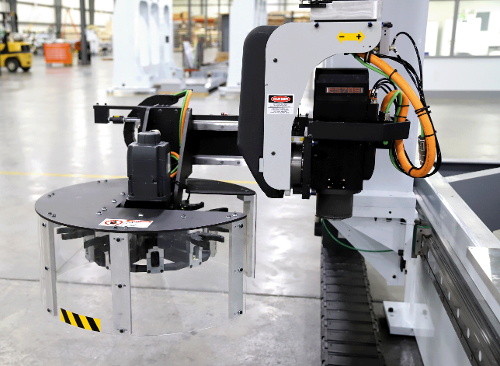

10 Position Rotary Automatic Tool Changer
High-Tolerance Tool Length Sensor
Automatic Lubrication System
Mist Coolant System
Wireless Probe Position Verification System
Three Dimensional Laser Compensated Axis Alignment
Siemens Intelligent Servo Drives Throughout
Fixture Placement Compensation
Constatnt Tip Speed Machining
Tip Center Rotation
Programmable and Controlled Five-Axis Motion
1 TB Solid State SATA Hard Drive
Air-Conditioned Control Cabinet
Solid State Memory and Control System (fully diagnostic)
Multi-Core Processor
22" Wide Full Color LCD Monitor
Network-ready with Enhanced Network Filter
Machine Training and Installation
Free Forum and Phone Support
