Thermwood Model 63 5 Axis 5'x40' CNC Router

Posted by Duane Marrett on Tue, Oct 03, 2023

Tags: aluminum, 5 Axis, Announcements, Model 63

The Model 63 is a large bed CNC router with moving bridge & stationary table designed for two and three dimensional machining of large composite parts & three dimensional patterns.  It is available in either a three or five axis configuration
Available Table Sizes:  5'x10' (1.5m x 3.0m), 5'x20' (1.5mx6.0m), 5'x40' (1.5mx12.0m), Table Extensions available up to 100' (18m)

FEATURES

  • 1" Thick Fixed Stress-relieved Aluminum Plate Table
  • Moving Gantry
  • 36" Z Axis
  • 40 HP 24,000 RPM Variable Speed Router
  • 10 Position Rotary Automatic Tool Changer
  • High-Tolerance Tool Length Sensor
  • Automatic Lubrication System
  • Mist Coolant System
  • Wireless Probe Position Verification System
  • Three Dimensional Laser Compensated Axis Alignment
  • Siemens Intelligent Servo Drives Throughout
  • Fixture Placement Compensation
  • Constatnt Tip Speed Machining
  • Tip Center Rotation
  • Programmable and Controlled Five-Axis Motion
  • 1 TB Solid State SATA Hard Drive
  • Air-Conditioned Control Cabinet
  • Solid State Memory and Control System (fully diagnostic)
  • Multi-Core Processor
  • 22" Wide Full Color LCD Monitor
  • Network-ready with Enhanced Network Filter
  • Machine Training and Installation
  • Free Forum and Phone Support
More Info on the Model 63: https://bit.ly/3PFcg86

Model 63 Info Request

0 Comments Click here to read/write comments

Thermwood Model 63 5'x45' CNC Router Machining Aluminum Video

Posted by Duane Marrett on Tue, May 10, 2016

Tags: Thermwood, aluminum, Video, Model 63

The Thermwood Multi-Purpose Three Axis Series are highly flexible, making them ideal for a variety of manufacturing applications.

Multi-Purpose 63

Thermwood Model 63 5'x45' Machining Aluminum VideoThe Multi-Purpose 63 is a large bed three-axis CNC router with a moving bridge and stationary table. Primarily designed for two dimensional machining of large composite parts, it is also highly recommended for the machining of three dimensional patterns.

Features of the Model 63:

  • Dual 12HP (3,000-24,000 RPM) HSD Spindle
  • Fixed Solid Aluminum Table
  • Longer table sizes available
  • Moving Gantry
  • Optional Aggregate Tooling
  • Siemens Intelligent Servo Drives
  • 3D Laser Compensated Axis Alignment
  • 4 Position Bar Style Tool Changer
  • Optional Automatic Lubrication
  • Optional 5 Position At the Head AutomaticTool Changer
  • Optional Drill Bank
  • QCore SuperControl
  • Optional Saw Aggregate
  • Optional 10 Position Rotary Automatic Tool Changer
  • Optional Probe System
  • Machine Training and Installation
  • Free Lifetime Phone/Forum Support

Request More Information from Thermwood

0 Comments Click here to read/write comments

Thermwood 3 Axis Multi-Purpose CNC Routers

Posted by Duane Marrett on Wed, Nov 12, 2014

Tags: 3 Axis, Model 43, Technology, Model 45, MTR, MTR 30DT, MTR 30, Model 53, Model 42, Model 63, MTR 21, MTR 36

The Thermwood Multi-Purpose Three Axis Series are highly flexible, making them ideal for a variety of manufacturing applications.

Whether you are interested in a moving table machine for low profile machining or a fixed table for large sheet material, plastic or composite sheets or upholstery frames, we have a solution for you:

Multi-Purpose 45

The Multi-Purpose 45 is a heavy-duty three axis CNC router available in either single or dual spindles with optional rotary axis

Thermwood Model 45 Dual Spindle 5x5 CNC Router

Model 45 Dual Spindle 5'x5' Single Table

 Thermwood Model 45 5x10 CNC Router

Model 45 5'x10' Single Table

Multi-Purpose 43

The Multi-Purpose 43 is an entry-level three axis CNC router made from fully stress-relieved structured steel for nested-based custom cabinets, custom furniture and support products.

Thermwood Model 43 4x8 CNC Router

Model 43 4'x8' Single Table - Moving Gantry



Multi-Purpose 53

The Multi-Purpose 53 is a moving gantry, fixed table, (optional roller hold down) three-axis CNC router, and is designed for the routing and stack machining of large sheet material such as fiberboard (MDF), particleboard and plywood. When configured as an optional FrameBuilder with Roller Hold-Down, it has all the elements needed to machine nested upholstered frame parts from sheet stock.

Thermwood Model 53 5x20 CNC Router

Model 53 5'x20' Fixed Table

Thermwood FrameBuilder 53 5x10 CNC Router

FrameBuilder 53 5'x10' Fixed Table



Multi-Purpose 63

The Multi-Purpose 63 is a large bed three-axis CNC router with moving bridge and stationary table. Primarily designed for two dimensional machining of large composite parts, and is also highly recommended for the machining of three dimensional patterns.

Thermwood Multipurpose Model 63 5'x40' CNC Router

Model 63 5'x40' Fixed Table



Multi-Purpose 42

The Multi-Purpose 42 is a moving single or dual table(s), fixed gantry, CNC router primarily designed to machine materials such as hardwoods, softwoods, fiberboard (MDF), particleboard, plastics and aluminum.



Thermwood Model 42 5x10 Dual Spindle CNC Router

Model 42 5'x10' Dual Spindle

 Thermwood Model 42 Single Table 10x5 CNC Router

Model 42 10'x5' Single Moving Table

Multi-Purpose MTR

The Multi-Purpose MTR Series are complete three axis CNC routing systems with single or dual in-line tables for nested base, composite or plastics.

Thermwood MTR 30 Dual Table 5x10 CNC Router

MTR 30 Dual Tables 5'x10' Moving Gantry

 Thermwood MTR 21 7'x12' CNC Router

MTR 21 7'x12' Single Moving Gantry

More Info

Click to Calculate the Value of a CNC Investment



0 Comments Click here to read/write comments

Model 63 5'x45' CNC Router Video - Machining Aluminum

Posted by Duane Marrett on Fri, Sep 05, 2014

Tags: Thermwood, aluminum, CNC Router, Video, Model 63

Below is a new video showing a Thermwood Model 63 5'x45' CNC router machining aluminum.

This machine features an optional 10-position rotary automatic tool changer, optional saw aggregate and optional Renishaw probe system.

Video

About the Model 63

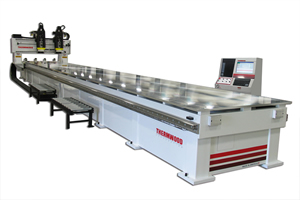

Thermwood Model 63 CNC Router

The Thermwood Model 63 is a large bed three-axis CNC router with moving bridge and stationary table. Primarily designed for two dimensional machining of large composite parts, and is also highly recommended for the machining of three dimensional patterns (various table sizes up to 60' are available).
Click to Calculate the Value of a CNC Investment
0 Comments Click here to read/write comments
