Thermwood Heavy-Duty AutoProcessor in a Customer's Shop

Posted by Duane Marrett on Tue, Jan 19, 2016

Tags: CNC, CNC Routers, CNC Router, Auto Labeling, AutoProcessor, Auto Unload, Auto Load

The Thermwood AutoProcessor is a high-speed, automatic load/unload, heavy-duty three-axis CNC routing system for nested based feed through machining.  Available in a variety of machine table sizes, it is used in nested based production of cabinets, closets and custom furniture.

Thermwood AutoProcessor

How it Works:

With each cycle, the machine simultaneously labels one sheet while positioning and machining the other sheet.  It then off-loads the finished parts while loading the next sheet and repeats the process. Dust collection during this process keeps scrap and debris to a minimum.Labels help the operator to quickly sort the parts, and Assembly Marks help final assembly happen quickly and easily.

Thermwood AutoProcessor 5'x10' in a Customer's Shop:


Features of the Thermwood AutoProcessor:

  • Various Table Sizes Available (5'x10', 5'x12' and 7''x12')
  • Automatic Load/Unload System (6000 lb automatic lift table for loading and a steel offload/work table)
  • 12HP (3,000-24,000 RPM) Spindle
  • Universal Vacuum
  • Rake w/Integrated Dust Collection
  • Rapid Speed:  4100 Inches per minute
  • Siemens Intelligent Servo Drives
  • 3D Laser Compensated Axis Alignment
  • 10 Position Rotary Automatic Changer
  • Automatic Pop-Up Pins
  • Automatic Tool Length Sensor
  • Automatic Labeling System
  • QCore SuperControl
  • Machine Training and Installation
  • Free Lifetime Phone/Forum Support

Drawings:

Thermwood AutoProcessor - Front View

Thermwood AutoProcessor - Side View

Thermwood AutoProcessor - Top View

FrameBuilder 53 5'x10' CNC Router Video with Roller Hold Down, Auto Load/Unload

Posted by Duane Marrett on Fri, Mar 27, 2015

Tags: Thermwood, 3 Axis, CNC Router, Video, Auto Unload, Auto Load, FrameBuilder 53, Dual Spindle, Roller Hold Down

Below is a new video showing the redesigned Thermwood FrameBuilder 53 5'x10' CNC router in action.

The machine in the video features the following options:

  • Automatic load/unload system with 6,000 lb lift table and unload sorting table
  • Dual 18HP (3,000-18,000 RPM) HSD spindles with programmable head spacing
  • Two optional electric drills

Video


About the FrameBuilder 53



Thermwood FrameBuilder 53 Roller Hold Down CNC Router

The Thermwood FrameBuilder 53 series is a heavy duty, high-performance three-axis CNC machining center.  It is specifically developed for the machining of upholstery frames and other sheet goods that require rollers on each side of the spindle to hold various materials typically not held by vacuum while machining.

The redesigned FB53 is now equipped with rack and pinion for both the X and Y Axes, bigger drives, and a redesigned gantry that is stiffer while allowing more options.  These changes represent over 110% increase in speed from the original (various table sizes up to 20' are available).

FrameBuilder 53 5×10 Shown w/optional dual spindles
Thermwood FrameBuilder 53 5'x10' CNC Router with optional dual spindles and 6,000 lb load table
FrameBuilder 53 5×10 Shown w/optional dual spindles and 6,000 lb load table



Features of the FrameBuilder 53:



  • 5'x10' Machining Table (available table sizes up to 20 Feet in Length)
  • Optional Automatic Load/Unload System (6000 lb automatic lift table for loading)
  • Optional Dual 18HP (3,000-18,000 RPM) HSD Spindles
  • Optional Programmable Head Spacing
  • Fixed Solid Aluminum Table
  • Moving Gantry
  • Rapid Speed:  3160 Inches per minute
  • Siemens Intelligent Servo Drives
  • 3D Laser Compensated Axis Alignment
  • Automatic Lubrication
  • Optional At the Head Automatic Tool Changer
  • Optional Electric Drills
  • QCore SuperControl
  • Optional Unload/Sorting Table
  • Machine Training and Installation
  • Free Lifetime Phone/Forum Support

Dimensional Drawings (featuring optional dual spindle and load/unload):

Thermwood FrameBuilder 53 5'x10' CNC Router Dimensional Drawing Top View

Thermwood FrameBuilder 53 5'x10' CNC Router Dimensional Drawing Front View

Thermwood FrameBuilder 53 5'x10' CNC Router Dimensional Drawing Side View


Click to Calculate the Value of a CNC Investment

Meet the Thermwood AutoProcessor 21 7'x12'

Posted by Duane Marrett on Thu, Oct 31, 2013

Tags: Thermwood, New, 3 Axis, Announcements, CNC Router, cabinets, Video, Auto Labeling, Auto Unload, Auto Load, AP 21

 Thermwood AutoProcessor 21 7'x12' CNC Router


Description:

The AutoProcessor-21 is a high-speed, automatic load/unload, heavy-duty CNC routing system for nested based feed through machining.  It is used in nested based production of cabinets, closets and custom furniture.


Features of the AP 21:

  • 7'x12' Machining Table
  • Automatic Load/Unload System (6000 lb automatic lift table for loading and 7'x12' steel offload/work table)
  • 12HP (3,000-24,000 RPM) Spindle
  • Universal Vacuum 1 or 2 Zone
  • Rake w/Integrated Dust Collection
  • Rapid Speed:  4100 Inches per minute
  • Siemens Intelligent Servo Drives
  • 3D Laser Compensated Axis Alignment
  • 10 Position Rotary Automatic Changer
  • Automatic Pop-Up Pins
  • Automatic Tool Length Sensor
  • Automatic Labeling System
  • QCore SuperControl
  • Machine Training and Installation
  • Free Lifetime Phone/Forum Support

AutoProcessor 21 in action:


Click to Calculate your CNC Router Investment


Drawings:

Thermwood AP 21 7'x12' 3/4 View

Thermwood AP 21 7'x12' Front View

Thermwood AP 21 7'x12' Side View

Thermwood AP 21 7'x12' Top View

2013 Thermwood Dealer Conference

Posted by Duane Marrett on Thu, Apr 25, 2013

Tags: Thermwood, Announcements, Model 77, Dealer Conference, Auto Labeling, Auto Unload, 2013

We recently held our 2013 Dealer Conference at our headquarters in Dale, IN. The purpose of this annual event is to get all of our domestic and international dealers together in round-table informative sessions to discuss sales strategies and also to present the exciting changes and new products we plan to release in the next year.

Of course, the conference isn't all work and no play!  It also gives everyone a chance to socialize and catch up on news, as well as the opportunity to award our top sellers special prizes at the awards dinner.

This year, our top dealership was CNC Automation out of Canada.  Second and third places went to Automation Associates, Inc and Tech Con.  The award for the dealership with the Most Improved Sales for 2012 went to CNC Solutions.  The award for top International Sales went to Tervelli out of Turkey.  Congratulations, guys!


1st Place CNC Automation

Pictured above (l-r) are: Andrew Legault (CNC Automation), Dennis Palmer (VP Sales for Thermwood), Jason Susnjara (VP Marketing for Thermwood) and Bob Law (CNC Automation).


2nd Place - Automation Associates, Inc

Pictured above are: (l-r) Mark Drone (Automation Associates, Inc), Dennis Palmer (VP Sales for Thermwood) and Jason Susnjara (VP Marketing for Thermwood).


3rd Place - Tech Con

Pictured above are: (l-r) Robert Vollmer (Tech Con), Dennis Palmer (VP Sales for Thermwood), Jason Susnjara (VP Marketing for Thermwood) and Glenn Suss (Tech Con).


Most Improved Sales 2012

Pictured above are: (l-r) Dennis Palmer (VP Sales for Thermwood), Phil Marker (CNC Solutions) and Jason Susnjara (VP Marketing for Thermwood).


Top International Sales

Pictured above are: (l-r) Dennis Palmer (VP Sales for Thermwood), Cumhur Arslanoğlu (Tervelli) and Jason Susnjara (VP Marketing for Thermwood).


Thermwood CEO Ken Susnjara explains a new concept

Thermwood CEO Ken Susnjara gives a demonstration during the 2013 Dealer Conference.

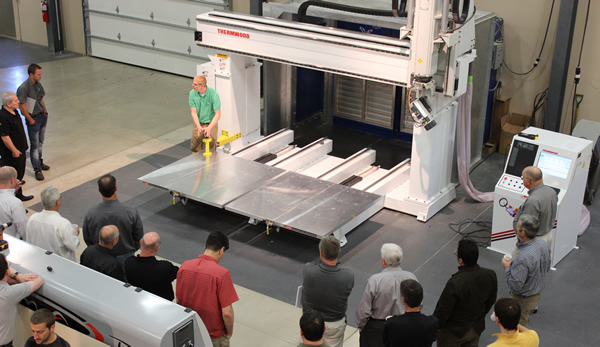

Scott Vaal demonstrates 5 Axis Alignment Verification

Scott Vaal demonstrates the 5 Axis Alignment Verification Routine during the 2013 Dealer Conference.


Thermwood dealers and employees socialize during the 2013 Dealer Conference

Thermwood personnel, domestic and international dealers socialize after hours during the 2013 Dealer Conference.



Thermwood at the 2013 AWFS Show in Las Vegas!

Posted by Duane Marrett on Mon, Apr 15, 2013

Tags: Thermwood, CNC, CNC Routers, Nested Base, 3 Axis, Announcements, Trade Shows, edgebanding, Model 43, AWFS, CNC Router, Cabinet, Model 45, Las Vegas, cabinets, nested based, 43, Low Cost, edgebander, Auto Unload, Continuous C-Axis Rotation, solid wood processing, Demonstrations, Auto Load

Thermwood to Demonstrate New Auto-Labeling and Unload System on Model 43 and Solid Wood Machining on Model 45

Thermwood CabinetShop 43 with Auto Label and Unload Options

The 2013 AWFS Show (July 24th-27th) promises to be an exciting opportunity to visit Las Vegas and see the very latest in CNC Router technology from Thermwood!

For AWFS 2013, Thermwood is proud to demonstrate our affordable CabinetShop 43 CNC Router equipped with the new optional Auto Labeling and Unload Rake System for nested based production.  This new system will be in action at AWFS 2013 in Booth #8400.



Featuring the CabinetShop 43 with New Automatic Labeling and Unload System:



Speed up Production Time

This new option helps save time by automating the process of placing labels and off-loading finished material.  The automated system quickly places the labels and then machines the parts.  It next unloads the finished material to a sorting table.  This automatic and economical addition can greatly speed up production time, and is available both on new machines and as a retrofit.

Also at AWFS we will be demonstrating a Fravol edgebander.  Fravol, known for high quality edgebanders, is exclusively represented and serviced in the US by Thermwood.



Also Demonstrating Solid Wood Machining on the Thermwood Model 45

CabinetShop 45



We will also be demonstrating solid wood machining utilizing the Nemi Pod Hi-Flow System on our Thermwood Model 45

The heavy-duty Model 45 is designed for a variety of functions including the machining of rotary operations when equipped with our optional C-Axis.  This expands the capability of this already useful machine to include volutes, carvings, chair parts, stair components and much more.


See at AWFS:

This new system will be in action at AWFS 2013 (July 24th-27th) in Booth #8400.
