Thermwood Profile Modeler - from Sketch to Production

Posted by Duane Marrett on Wed, Mar 13, 2013

Tags: Thermwood, eCabinet Systems, Woodworking, CNC, Nested Base, Free, 3 Axis, Model 45, Technology, smart, wood carving, CNC Routers, software, cabinets, wood, Video, control nesting, MTR, CabinetShop, 43, Model 43, nested based, Easy, carving, SR43, SignRouter 43, CNC Router, Thermwood, save money on cnc router, QCore, SuperControl, Announcements, US made, CNC Routers, introduction, millwork, Product Information, Demonstrations, Profile Modeler

Thermwood Profile ModelerThermwood's Profile Modeler allows you to quickly create a molding or custom shape from a sketch or drawing on a Thermwood CNC Router with no special shaped tooling required.

This video demonstrates using Profile Modeler to create a custom curved cherry molding from Sketch - to Profile Modeler - to Machine - to Completed Shape.


Steps used in the video:

In eCabinet Systems:
  • Verify the measurements
  • Create the shape using Shape Manager in eCabinet Systems
  • Create Tool
  • Apply Tool to create Shape

On Thermwood QCore SuperControl:
  • File loaded into Profile Modeler on QCore SuperControl
  • Verify Tool Path
  • Run Program
  • Machining Part (Roughing/Finishing/Detail Passes)
  • No special shaped tooling required - Tools Used: 1/2 Straight, 1/2 Ballnose, 1/8 Ballnose, 1/8 Flat
  • Completed Shape

For more information on Profile Modeler or any of our other products, please click here or contact us at 1-800-533-6901.


Thermwood AutoProcessor 5×10

Posted by Duane Marrett on Tue, Aug 21, 2012

Tags: Woodworking, Nested Base, 3 Axis, Trade Shows, cabinets, closets, High Performance, CNC Router, IWF, Thermwood, QCore, Announcements, AutoProcessor, Furniture, Point of Purchase, architectural, millwork, CNC

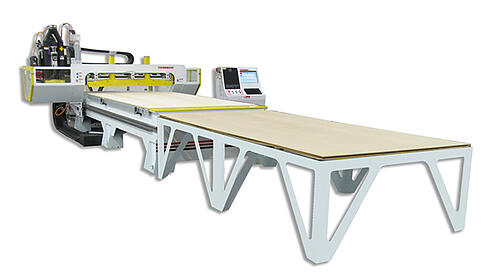

Thermwood's latest machine, the AutoProcessor 5x10 - Shown at the 2012 IWF show in Atlanta, GA Booth #5753.

The AutoProcessor 5×10 is a complete solution for Nested Based Panel Processing, Cabinet/Closets, Marine/Boat Building, Furniture Manufacturing, Exhibits/ Store Fixtures, Machining Plastic Sheets and High Volume Cabinet Production.

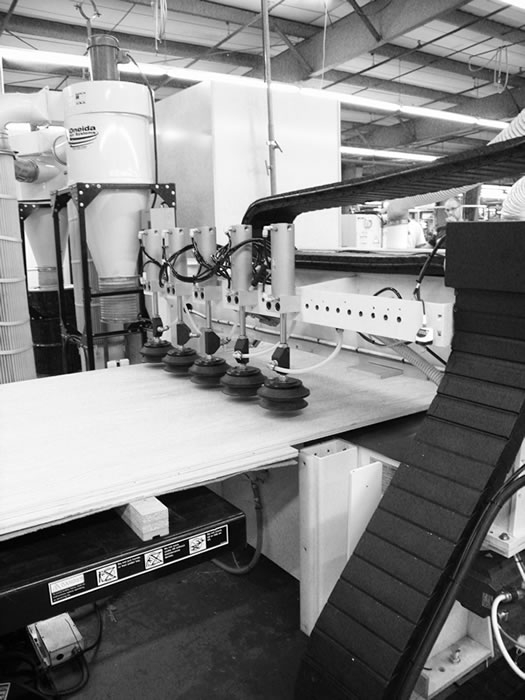

With each cycle, the machine first labels the sheet, positions the sheet on the table, machines the material, off-loads the finished parts and then repeats the process. Dust collection during this process keeps scrap and debris to a minimum.  Labels help the operator to quickly sort the parts, and Assembly Marks help final assembly happen quickly and easily.

Thermwood AutoProcessor 5x10Features:
• Thermwood QCore SuperControl
•5’ x 10’ Working  Table / Moving Gantry
• Rapid Speed  4,200 IPM
• 4000 lb. Lift Table for Loading
• 12 HP HSK Electro-Spindle
• 8 Position Tool Changer
• Automatic Pop-Up Pins
• Automatic Tool Sensor

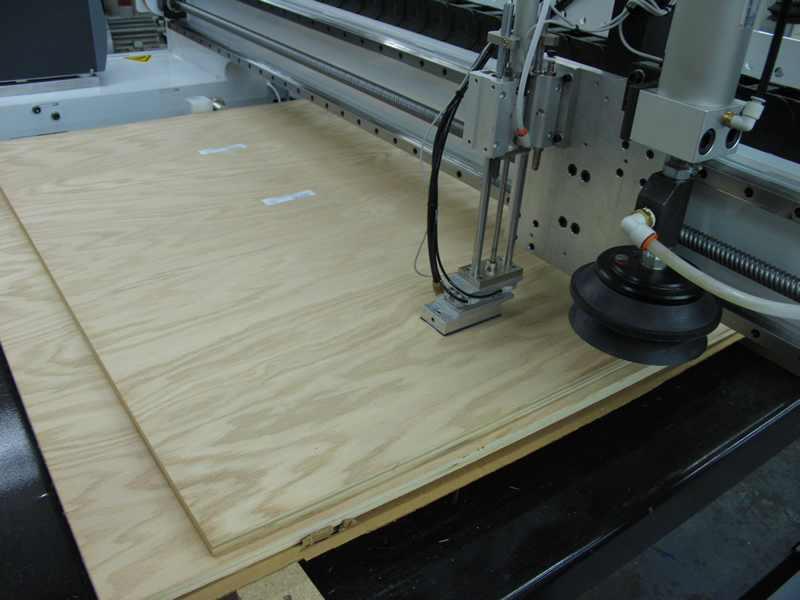

• Automatic CNC Labeler
• 9 Spindle Drill Bank
• Unload Table

More information can be found here

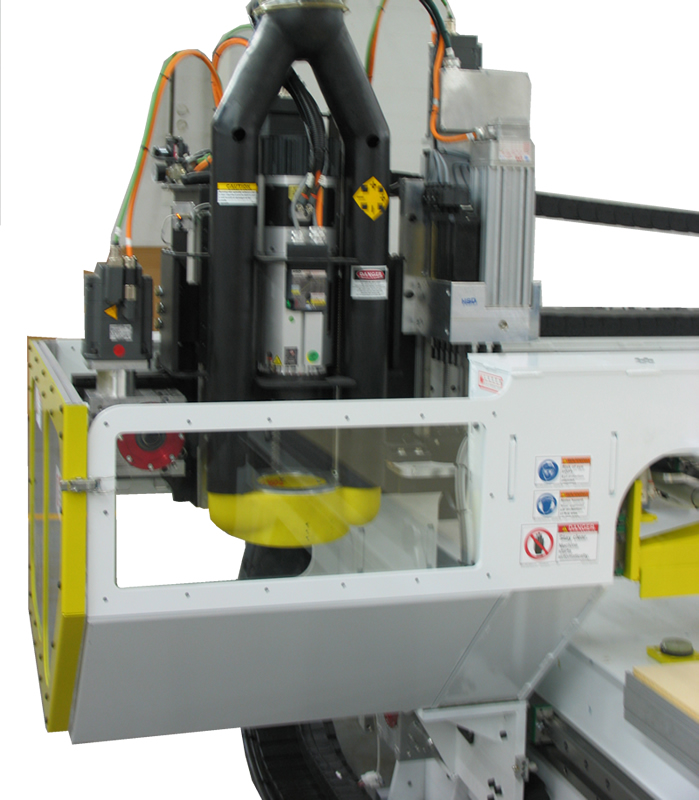

Thermwood AutoProcessor 5x10

Thermwood AutoProcessor 5x10

Thermwood AutoProcessor 5x10
