Now Operate the Cut Center as a CNC router with "CNC Access"

Since the introduction of Thermwood's innovative and award-winning Cut Ready Cut Center, we've received requests to allow access to CNC functions of the Cut Center while also preserving the basic Cut Center functionality and simplicity of operation.

To address these requests, Thermwood is proud to announce we have added “CNC Access” to our Cut Center machine. This gives you the following expanded flexibility:

• You can operate the system solely as a Cut Center with no CNC Programming required.
• You can also operate the system as a CNC router in the traditional manner, running programs generated with virtually any CNC software.
• Plus, using eCabinet Systems software and following specific design protocols, you can custom design products and add them to the Cut Center libraries and then those items can be machined by the Cut Center with no further programming (Note:  In addition to doing it yourself, Thermwood offers this type of product development as an optional service).

Best of Both Worlds:  Switch Between a CNC router and a Cut Center

Thermwood has created a simple way to switch between operating as a CNC router and operating as a Cut Center to assure that all machine parameters are properly reset and that the standard Cut Center tooling is properly installed, checked and ready to run.

We believe this approach dramatically expands the capability and flexibility of the Thermwood Cut Center, without losing its ease of use, yet still providing technical users new options to benefit from this new technology.

The Bottom Line...

Thermwood Corporation’s Cut Ready Cut Center with new "CNC Access", for the first time, allows people without extensive programming or CNC training to quickly and easily make a wide variety of products including cabinets, closets, furniture, doors, drawers and more. Don't have extensive programming experience?  Have programming experience and want both the flexibility of a CNC router and the ease of use of a Cut Center?  Looking for a machine that will grow with your business?  Then Thermwood's Cut Ready Cut Center with new "CNC Access" is the machine for you!

Please call us today at 1-800-533-6901 or click below for more information.

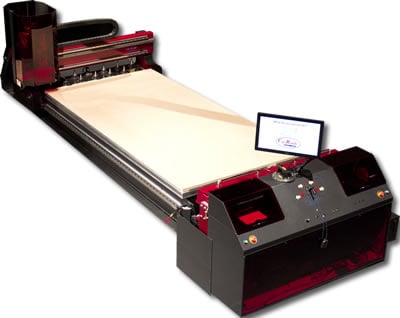

Thermwood's IWF Challenger's Award Winning “Cut Ready – Cut Center” is an alternative to CNC routers for making custom cabinets and furniture.

Here we want to help you answer the question:  Is a Cut Center the right machine for me?

We provide insight into this incredible machine and reasons as to why you would choose a Thermwood Cut Center over a traditional nested based CNC router.

Is a Cut Center Right For Me?

First, a Cut Center is clearly not a CNC router. It may look a little like a CNC router, but it doesn’t work at all like a CNC router.

A nested based CNC router has three basic elements:

• A control capable of running sophisticated software
• Cabinet design software capable of creating the required CNC programs
• A machine capable of running those programs.

A cut center consists of a single element, the machine. Everything is inside the machine, pre-selected, pre-installed and ready to run. There is no programming with a cut center. That’s right, no programming… none. A cut center actually knows how to make cabinets, allowing the user to make cabinets in about any way they want by simply selecting the desired product. You simply tell the machine what kind of cabinet you want (face frame/frameless, single/double side material, toe kick/detached toe, etc.), then select the specific cabinet from all the cabinets made that way and adjust the size.

Installing a Cut Center

Installation of a cut center couldn't be easier.  the process simply consists of connecting power, air and dust collection and you are ready to run production right away.  A new Cut Center comes with the program definitions and tooling preloaded.

Cut Center Has an Impressive Selection

The number of products you can make with a cut center is impressive. In addition to kitchen cabinets, there are closet, bath and utility cabinets and furniture (including book shelves, entertainment walls and table tops). You can also make drawers; side mount, undermount or slot slide, quarter inch or full thickness bottom, blind dado or dovetail construction. Simply tell the cut center to make drawers for the cabinets you cut and it does it - just that easy.

It also makes doors and drawer fronts. There are over 450 designs for MDF doors and drawer fronts including square, arch, cathedral, slab and sophisticated applied molding designs with both raised and recessed panels.

You can also make grain matched slab doors. Just like with drawers, simply tell the machine to make doors for the cabinets you just cut and it does it. It even makes moldings, both straight and arched. Select from hundreds of profiles, resize the profile in width and depth and it makes it. It uses a reverse 3d printing technique for MDF doors and moldings where, instead of adding a small amount of material each pass, it removes a small amount. This means that everything in the system is made with a set of standard tools.

Add Your Own Unique Products to the Cut Center

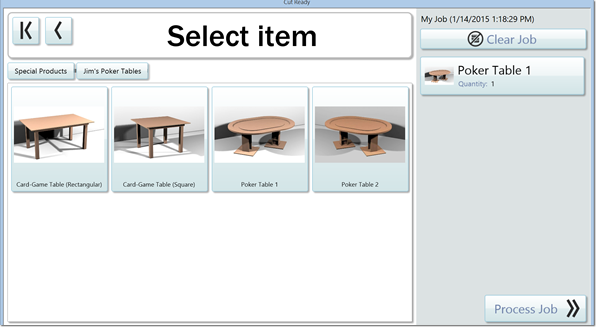

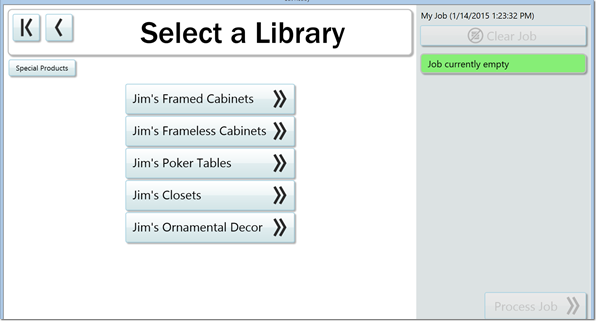

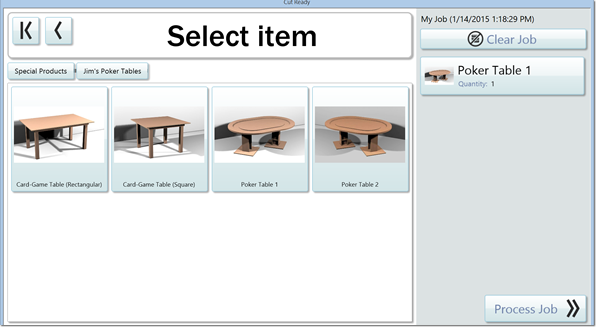

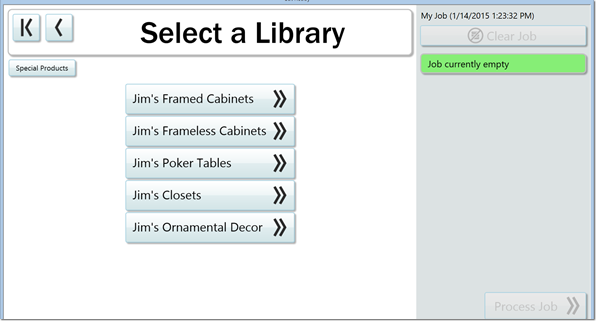

You may be impressed with the huge selection of products already in the Cut Center, but are thinking "But what about my custom stuff?  How can I have that added to the Cut Center as well?" With our new “Special Products” program the answer is simple, we add them for you!

With this new program, definitions for your unique products are custom developed and installed in your Cut Center. These are not just CNC programs. Definitions teach your machine to make your products in all their variations, all their sizes, from all the materials you use. The machine does it all!

How Does This Work?

• The process begins by developing a formal, written description of the products you want to make. This description details all aspects of the product and becomes the guiding document for the development team
• Once product definitions (based on your description), are complete, sample products are run to make certain that they function properly and that you are happy with the result.
• We then install the new definitions in your Cut Center. If you are installing several items, a Thermwood technician may visit your shop to help get you going. Otherwise, we can connect online, directly to your Cut Center, and make additions or changes as needed, without the need for a technical visit

Add more than just Cabinets and Furniture

This service is not restricted to cabinets or furniture items but will work for about anything that can be run on a CNC router. Some products may require special fixtures to hold the part and/or special tooling. In those cases the required fixtures and tools will be detailed in the written description and will be developed, tested and supplied as part of the “Special Products" package. All you do is select and run them

Add More Products at any Time

You can add additional products at any time and have existing product definitions modified if necessary. We stand ready to manage your product offering so you don’t have to

With the “Special Products” addition you still have all the features and product capabilities of the Cut Center, with your unique products as an added benefit

Operating the Cut Center

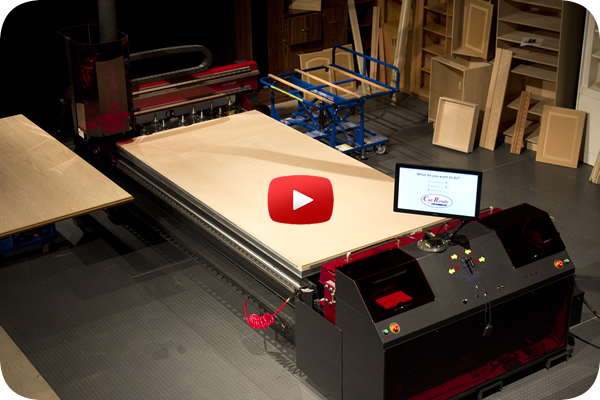

Running the cut center is also different. Everything is handled through an adjustable touch screen and a remote “clicker” you wear. Pretty much everything is handled automatically, tooling management and tool life, vacuum hold down and spoilboard management. All the operator does is follow step by step instructions. If needed, there are “Show Me” videos for each step.  You can even call a real live person on the screen if you need more help.

Easy to Run by Almost Anyone

A cut center can be operated by just about anybody, allowing you to produce a lot of different products with no programming and almost no effort. Thermwood has invested thousands of hours developing, testing and refining these programs. To duplicate this for a CNC router would also require thousands of hours.

There is a smooth integration between cabinets, drawers, doors and drawer fronts. For example, once you cut the cabinets, you can make everything else by just telling the machine to make the rest of the components for those cabinets.

Easy Assembly

Details in these cabinet designs (some patented), make assembly easier. Assembly marks machined into the joints show you which parts fit together and in which orientation and alignment pin holes make installing drawers really easy.

The machine will also print detailed step-by-step assembly instructions for more complex items like closet cabinets. It also prints a label for each part showing you which job and cabinet the part is for, which edges get edge banded and a bar code in case you need to re-make the part.

Flipping the Sheet

There is a major difference in the way the cut center handles parts that need to be machined on both sides (more complex pieces like closets or cabinets made from single sided material often require machining on both sides).

CNC routers generally cut the front side, cut the parts out and then machine the back side one part at a time. Not only is this difficult, but it can be confusing and is prone to error.

The cut center starts by loading the sheet, back side up and doing the back side machining first, on the whole sheet. It then flips the sheet over and machines the front side. When the parts are cut out, they are complete, front and back. A really unique feature of the cut center is that it has a “flipper” on the front of the machine that flips the sheet over, so this process is really easy. Just slide the sheet into a clamp located just off the front of the table and the clamp grips the sheet and rotates it 180 degrees, all within the confines of the table. When you first load your sheet, if the backside is not up, you can use the flipper to fix that too.

Free Ongoing Updates

Thermwood is continuously expanding the products our cut centers can produce, driven by feedback from users, and these new designs are available to all cut centers as a free download. System software updates are also available as a free download as they are released. The “Virtual Service” feature mentioned above is also available to cut center users for free.

Less Cost Over Time

Cut centers represent a departure in thinking from how things are done today and this new approach seems to make a lot of sense for a lot of cabinet shops. With lease payments around the cost of a single employee, cut centers make sense for nyone who just wants to make cabinets and not spend a lot of time learning to program computers.

Thermwood has introduced our IWF Challenger's Award Winning “Cut Ready – Cut Center” as an alternative to CNC routers for making custom cabinets.

In this post, we ask two main questions:  Why would you want a Thermwood Cut Center instead of a traditional nested based CNC router?  Why would a major supplier of CNC routers introduce a new product that competes directly with its already successful products in this market segment?

Why a Cut Center?

With the advanced technology available today, we at Thermwood believe that it’s time for something new…. something even better… something a lot easier, so after almost five years of technical development, we have released the Cut Ready – Cut Center. This system is clearly not a CNC router. It looks a little like a CNC router, but it doesn’t work at all like a CNC router.

A nested based CNC router has three basic elements:

• A control capable of running sophisticated software
• Cabinet design software capable of creating the required CNC programs
• A machine capable of running those programs.

A cut center consists of a single element, the machine. Everything is inside the machine, pre-selected, pre-installed and ready to run. There is no programming with a cut center. That’s right, no programming… none. A cut center actually knows how to make cabinets, allowing the user to make cabinets in about any way they want by just selecting the desired product. You simply tell the machine what kind of cabinet you want (face frame/frameless, single/double side material, toe kick/detached toe, etc.), then select the specific cabinet from all the cabinets made that way and adjust the size.

Installing a Cut Center

Installation of a cut center consists of connecting power, air and dust collection and you are ready to run production right away.

Cut Center Has an Impressive Selection

The number of products you can make with a cut center is impressive. In addition to kitchen cabinets, there are closet, bath and utility cabinets and furniture (including book shelves, entertainment walls and table tops). You can also make drawers; side mount, undermount or slot slide, quarter inch or full thickness bottom, blind dado or dovetail construction. Simply tell the cut center to make drawers for the cabinets you cut and it does it - just that easy.

It also makes doors and drawer fronts. There are over 450 designs for MDF doors and drawer fronts including square, arch, cathedral, slab and sophisticated applied molding designs with both raised and recessed panels.

You can also make grain matched slab doors. Just like with drawers, simply tell the machine to make doors for the cabinets you just cut and it does it. It even makes moldings, both straight and arched. Select from hundreds of profiles, resize the profile in width and depth and it makes it. It uses a reverse 3d printing technique for MDF doors and moldings where, instead of adding a small amount of material each pass, it removes a small amount. This means that everything in the system is made with a set of standard tools.

Operating the Cut Center

Running the cut center is also different. Everything is handled through an adjustable touch screen and a remote “clicker” you wear. Pretty much everything is handled automatically, tooling management and tool life, vacuum hold down and spoilboard management. All the operator does is follow step by step instructions. If needed, there is a “Show Me” video for every step.  You can even call a real live person on the screen if you need more help.

Why is a Cut Center for Me?

One reason you might want a cut center is that it can be run by just about anybody. Another reason is that you can produce a lot of different products with no programming and almost no effort. Thermwood has invested thousands of hours developing, testing and refining these programs. To duplicate this for a CNC router will also require thousands of hours.

There is also the smooth integration between cabinets, drawers, doors and drawer fronts. Once you cut the cabinets, you can make everything else by just telling it to make it for those cabinets.Another reason is that details in these cabinet designs, some patented, make assembly easier. Assembly marks machined into the joints show you which parts fit together and in which orientation. Alignment pin holes make installing drawers really easy. The machine will print detail step by step assembly instructions for more complex items like closet cabinets. It also prints a label for each part showing you which job and cabinet the part is for, which edges get edge banded and a bar code in case you need to re-make the part.

Ongoing Updates

Thermwood is continuously expanding the products our cut centers can produce, driven by feedback from users, and these new designs are available to all cut centers as a free download. System software updates are also available as a free download as they are released. The “Virtual Service” feature mentioned above is also available to cut center users for free.

The Bottom Line

This is clearly a new approach. It is not for everyone, but we believe there are a significant number of cabinet shops that would rather make cabinets than program computers and so we created the Cut Ready – Cut Center.

Thermwood’s new Cut Ready - Cut Center works much differently than a CNC router.  In this post we take an in-depth look at some of the distinctions:

CNC Router

A CNC router operates in a sophisticated technical environment. Computers and sophisticated design software are used to design cabinets, layout kitchens and create the CNC programs needed to make those kitchens. An operating environment has developed around these capabilities that the industry has become accustomed to. It takes a highly-skilled and trained operator to program and operate these machines.

Cut Center

First, there are no computers or design software. Everything is already in the machine. There is no programming. The cut center doesn’t need a computer to tell it how to move because it already knows how to make cabinets. To understand how this approach fits into the operating structure of a shop you must first realize that cut centers have been designed for cabinetmakers who are already running a successful business and simply want to make what they are doing more efficient with the least disruption possible. They don’t want to change from woodworkers to computer programmers but they would like to make their products faster, better and at lower cost.

How Does This Work?

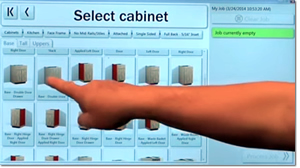

The cut center works through a large touch screen which essentially performs three functions. First, it allows you to adjust settings that tell the machine how you want to work, plus it watches routine maintenance and tooling.

The other two areas are picking what you want to make and actually making it.

To pick what you want you have to know what you want. If a shop is operating, they have already developed some way of determining what they need to make. Some may do it by hand, other might use software or drawings or whatever works today. The cut center doesn’t mess with this area. Whatever you are doing today is what you will do with the cut center.

-Choosing What to Make

Once you know what you want and the sizes you need, picking it is intuitive and easy. Pretty much anyone can do it the first time, even if they have never seen the machine before. You do need to know how you want your cabinets made, but you don’t need to know anything about the machine. You will group all the cabinets you want to make into a job which the machine will nest together and cut. If you want, you can create a job but not necessarily run it right away, which is probably what most people will do. When you create a job and process it, the machine will tell you how many sheets of each material you will need and how long it will take to cut all the parts. This information can be quite useful when you are working with a customer and developing a quote.

-Running the Job

Once you are ready, it is simply a matter of calling up the job and running it. Going back to the list of material, it not only tells you what material you will need but also tells you in what order the materials will be needed. You can print this out and use it as a pick list to load the handling carts. The Cut Ready Cut Center comes with two tilt carts that make it easy to retrieve and stage the material for a job. While you are working off of one you can be picking material for the next job.

Once the cabinet boxes are complete, you can make drawers, doors and drawer fronts. These are easy. Simply select the type of drawer and the door and drawer front designs you want and tell it to make them for your job. If you don’t want to use the machine for your doors and drawers the machine will print out a list of sizes for you.

-Stopping a Job

Another interesting aspect is that you can stop a job between sheets at any point and then finish it later. This is great when you go home at night or if you have to work in a “hot” job in the middle of regular production.

-Familiar but Different

Some of the operations of the machine would be familiar to anyone who has operated a CNC router but a number of areas are different.

Let’s start with loading. First, the cut center manages the vacuum system. It turns the pump on and off and turns vacuum to the table on and off. When you are told to load a sheet, it pumps air through the table, sort of like an air hockey table, to make it easier to slide the sheet. It also uses special sensors that detect when the sheet is tight against the location stops. When this happens, the machine turns off the float air, turns on vacuum and drops the location stops, all automatically.

-Using the Clicker

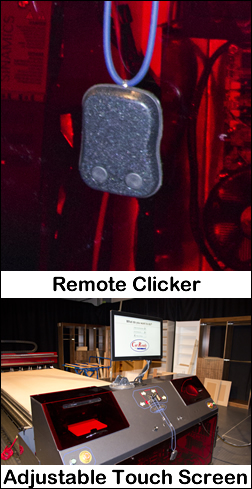

Another difference is the “clicker”, which is a fob-like device you wear around your neck. The silicone cord necklace for the clicker uses magnetic catches so if it gets caught it simply pulls off. This clicker is used to communicate with the machine so you don’t have to go back to the control every time you want to do something. It also allows you to stop the machine when it is cutting, so you don’t need to stay near the stop button while the machine is running. When you get used to the position sensors and the clicker, things that were awkward before become simple, natural and easy.

-Flipping the Sheet

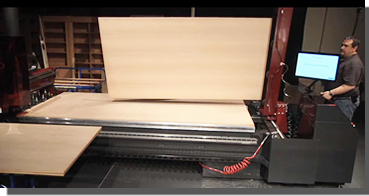

There is a major difference in the way the cut center handles parts that need to be machined on both sides (more complex pieces like closets or cabinets made from single sided material often require machining on both sides).

CNC routers generally cut the front side, cut the parts out and then machine the back side one part at a time. Not only is this difficult, but it can be confusing and is prone to error.

The cut center takes a different approach. It starts by loading the sheet, back side up and doing the back side machining first, on the whole sheet. It then flips the sheet over and machines the front side. When the parts are cut out, they are complete, front and back. A really unique feature of the cut center is that it has a “flipper” on the front of the machine that flips the sheet over, so this process is really easy. Just slide the sheet into a clamp located just off the front of the table and the clamp grips the sheet and rotates it 180 degrees, all within the confines of the table. When you first load your sheet, if the backside is not up, you can use the flipper to fix that too.

-Tooling is Managed For You

Tooling is also handled differently with a cut center. The machine manages tooling so you don’t have to. It uses standard “Cut Ready” tools. Each tool is numbered and has a “Chuck Line” showing how far to insert the tool into the tool holder. When a tool needs to be changed, the machine brings it to you and tells you which tool bit to insert. It then measures both the length and diameter of the new tool and adjusts all the tooling parameters. If you load the wrong bit by accident, it will know and will bring it back and ask you to fix it.

Since the machine knows when a tool is changed, it also knows how long that tool lasted. After a while, it knows about how long each tool will last in your operation and will warn you when a tool nears its historical life. This can prevent cutting scrap parts because of dull tools.

-Vacuum Hold Down

Another area that needs attention is vacuum hold down and waste board management. The “waste board” is a quarter inch thick board that sits on top of the table board. As parts are cut, shallow channels are cut into the waste board and eventually it needs to be resurfaced. Resurfacing is a simple automatic process that can be performed, even in the middle of a job. The machine keeps track of cuts in the waste board and warns you when it needs to be resurfaced. It may even require that you resurface it if it knows that parts on the next sheet will move.

Final Thoughts

While this doesn’t cover every aspect of running a cut center, it should give you a flavor of what it is like to run this next generation of cabinet machines. They are flexible, easy and require a lot less technical skill and training. This almost makes cabinetmaking fun again.

Where to See

You can see and get hands-on experience with the IWF Challengers Award Winning Cut Center when it makes its Canadian debut November 6th and 7th at the CNC Automation Open House.  You can also contact us here at Thermwood to arrange a free personal and interactive demonstration here at our Dale, IN headquarters.
