Thermwood Five Axis Alignment Verification Routine

Posted by Duane Marrett on Thu, Mar 07, 2013

Tags: Thermwood, CNC, software, software update, Composites, CNC Routers, 5 Axis, Announcements, CNC Router, Model 90, aerospace, Model 70, Model 77, Video, QCore, SuperControl, introduction

Thermwood Five Axis Alignment Verification Routine

Thermwood has developed our new Five Axis Alignment Verification Routine which is used to record and populate the alignment measurement values into the Thermwood QCore control system (after machine alignments are manually performed).

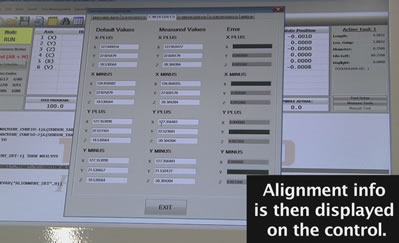

This routine automatically checks alignment in multiple axes and allows alignment to be quickly verified between jobs.  The routine compares the measured values to the default values.

The Thermwood 5 Axis Alignment Verification Routine includes:

  • Renishaw high-tolerance tooling sensor
  • Precision ground pin
  • Dedicated tool holder
  • Collet and all mounting hardware.


For more information on the Five Axis Alignment Verification Routine, please contact us at 1-800-533-6901.
