Thermwood 3 Axis Multi-Purpose CNC Routers

Posted by Duane Marrett on Wed, Nov 12, 2014

Tags: 3 Axis, Model 43, Technology, Model 45, MTR, MTR 30DT, MTR 30, Model 53, Model 42, Model 63, MTR 21, MTR 36

The Thermwood Multi-Purpose Three Axis Series are highly flexible, making them ideal for a variety of manufacturing applications.

Whether you are interested in a moving table machine for low profile machining or a fixed table for large sheet material, plastic or composite sheets or upholstery frames, we have a solution for you:


Multi-Purpose 45

The Multi-Purpose 45 is a heavy-duty three axis CNC router available in either single or dual spindles with optional rotary axis

Thermwood Model 45 Dual Spindle 5x5 CNC Router

Model 45 Dual Spindle 5'x5' Single Table

Thermwood Model 45 5x10 CNC Router

Model 45 5'x10' Single Table


Multi-Purpose 43

The Multi-Purpose 43 is an entry-level three axis CNC router made from fully stress-relieved structured steel for nested-based custom cabinets, custom furniture and support products.

Thermwood Model 43 4x8 CNC Router

Model 43 4'x8' Single Table - Moving Gantry




Multi-Purpose 53

The Multi-Purpose 53 is a moving gantry, fixed table, (optional roller hold down) three-axis CNC router, and is designed for the routing and stack machining of large sheet material such as fiberboard (MDF), particleboard and plywood. When configured as an optional FrameBuilder with Roller Hold-Down, it has all the elements needed to machine nested upholstered frame parts from sheet stock.

Thermwood Model 53 5x20 CNC Router

Model 53 5'x20' Fixed Table

Thermwood FrameBuilder 53 5x10 CNC Router

FrameBuilder 53 5'x10' Fixed Table




Multi-Purpose 63

The Multi-Purpose 63 is a large bed three-axis CNC router with moving bridge and stationary table. Primarily designed for two dimensional machining of large composite parts, and is also highly recommended for the machining of three dimensional patterns.

Thermwood Multipurpose Model 63 5'x40' CNC Router

Model 63 5'x40' Fixed Table




Multi-Purpose 42

The Multi-Purpose 42 is a moving single or dual table(s), fixed gantry, CNC router primarily designed to machine materials such as hardwoods, softwoods, fiberboard (MDF), particleboard, plastics and aluminum.



Thermwood Model 42 5x10 Dual Spindle CNC Router

Model 42 5'x10' Dual Spindle

Thermwood Model 42 Single Table 10x5 CNC Router

Model 42 10'x5' Single Moving Table


Multi-Purpose MTR

The Multi-Purpose MTR Series are complete three axis CNC routing systems with single or dual in-line tables for nested base, composite or plastics.

Thermwood MTR 30 Dual Table 5x10 CNC Router

MTR 30 Dual Tables 5'x10' Moving Gantry

Thermwood MTR 21 7'x12' CNC Router

MTR 21 7'x12' Single Moving Gantry


More Info

Click to Calculate the Value of a CNC Investment



The Most Significant Technical Advancement Since Nested Based Manufacturing

Posted by Duane Marrett on Fri, Jun 06, 2014

Tags: Thermwood, New, 3 Axis, Technology, cabinets, Video, Announcements, Cut Ready, Cut Center, doors, drawers, moldings

Thermwood Cut CenterDo you realize that nested based cabinet technology was first developed thirty years ago?

For technology, that’s ancient, and it really hasn’t changed much! It’s time for something new… something better… something easier… a lot easier

what is it?

It’s called a “cut center” and it’s really different. It makes virtually everything a cabinet shop needs, but there is no programming. That’s right, no computer, no software and no programming…none….EVER !

no programming?

A cut center doesn’t need programming because it already knows how to make cabinets, closets, furniture, doors, drawers, moldings and more…. thousands and thousands and thousands of designs. Just tell it what you want and it makes it, the size you want and the way you want

Thermwood has just announced the very first cut center, called "Cut Ready".  This amazing new technology has already been discovered by the business media and is being featured on Fox Business News, Bloomberg Television, Bloomberg International Europe and Bloomberg International Asia multiple times this summer and fall

The amazing thing about this machine is that it can be run by just about anyone, no special training, no special technical skills. This is manufacturing for the average person

Now cabinet shops can remain cabinet shops and not be enslaved by technology. It installs and you are in full production in a couple of hours.  It can be run by your current folks and make you a ton of money

more info

See videos and more info at cutready.com






Thermwood 5 Axis Multi-Purpose CNC Routers

Posted by Duane Marrett on Fri, May 16, 2014

Tags: 5 Axis, Model 90, Model 67, Technology, aerospace, CNC Routers, Model 70, CNC Router, CNC Routers, Model 77

The Thermwood Multi-Purpose Five Axis Series combines all the elements needed for trimming formed parts, patterns or molds using five-axis simultaneous motions.

Whether you are interested in a moving table machine for high-speed trimming, a fixed table for large aerospace and composite fixtures or a high-wall machine, we have a solution for you:


Multi-Purpose 67

The Multi-Purpose 67 is an entry-level five axis available with a variety of either single or dual moving aluminum table sizes.

Thermwood Model 67 7x10 CNC Router

Model 67 7x10 Single Moving Table

Thermwood Model 67 10x5 CNC Router

Model 67 5x10 Dual Moving Tables


Videos








Multi-Purpose 90

The Multi-Purpose 90 is a heavy-duty five-axis designed for high-speed trimming and pattern machining, available in single or dual moving aluminum tables.

Thermwood Model 90 5x12 Dual Table CNC Router

Model 90 5x12 Dual Moving Tables

Thermwood Model 90 10x5 CNC Router

Model 90 10x5 Single Moving Table


Videos


Multi-Purpose 70

The Multi-Purpose 70 is designed for aerospace and composite applications utilizing large/heavy fixtures (various sizes available).

Thermwood Model 70 10x20 CNC Router

Model 70 10x20 Fixed Table

Thermwood Model 70 10x10 CNC Router

Model 70 10x10 Fixed Table


Video

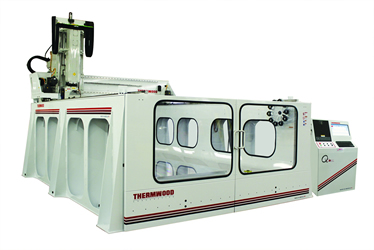

Multi-Purpose 77

The Multi-Purpose 77 is a heavy-duty, high-speed contained system for the machining of large aerospace and composite materials (various sizes available).

Thermwood Model 77 5x10 CNC Router

Model 77 10x20 Fixed Table


Videos


More Info

Click to Calculate the Value of a CNC Investment

Smart-routers allow the machine operator to safely do other jobs

Posted by Duane Marrett on Wed, Jun 19, 2013

Tags: Thermwood, 3 Axis, Technology, Personal Pause Button, smart-router, smart-router, safety

Smart-routers support pause technology. The operator is no longer forced to remain at the machine to stop it in an emergency. A pause button clipped to his belt can stop the machine, so the operator is free to perform other tasks away from the control. A progress bar, visible from a distance, shows the operator how long before he needs to service the machine. It’s like getting an extra worker for free.

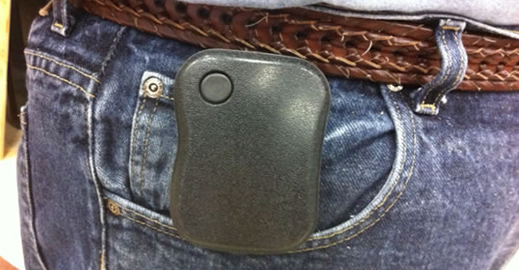

Pause button allows machine operator to safely do other jobs

Personal pause allows machine operator to safely do other jobsWith standard routers, the operator must remain close to the control so he can stop the machine if something goes wrong. The only job he can really do is watch the machine. With a smart-router, a pause button clips to his belt. Pressing it anywhere in the production cell stops the machine. It works like an emergency stop, but is not a “wrench in the gearbox” emergency stop. It immediately stops the machine, but offers options:

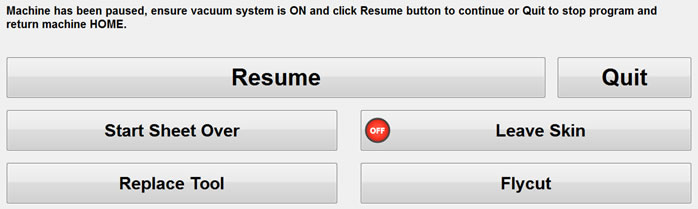

Thermwood Personal Pause Button Control ScreenIf you break a tool, the smart-router drops off the tool holder and tells you to replace the tool. It then picks up the new tool, automatically measures it, adjusts the program for the new tool length and diameter, recuts the path of the broken tool and continues with the job. You can also abandon and recut the sheet you are working on. Perhaps the sheet is warped or you found an internal defect when you started cutting. The machine gives you step by step instructions to replace and recut the sheet, right in the middle of the job.

Perhaps some parts are moving because you didn’t fly-cut the spoilboard soon enough. You can instruct the machine to go ahead and finish this sheet, but leave a skin on all remaining parts so they won’t move and be scrapped. You can easily trim the skin afterwards and save the parts. By the way, smart-routers can fly cut a spoilboard in the middle of a job, then adjust the program for the new spoilboard thickness and finish the job. If these types of problems are encountered on an ordinary router, addressing them is much more involved.

If you think about it, just the labor saving of being able to use the machine operator to do other tasks in the production cell is enough to pay for the upgrade to a smart-router. The savings in scrap, labor and programing when you encounter a problem makes it that much better.

By the way, not fly cutting the spoilboard soon enough to keep parts from moving is probably the single most common reason for scrapping parts in nested based machining. Smart-routers try to help by keeping track of where you have cut into the spoilboard as you machine parts. Before instructing you to load another sheet, it looks at the parts on the next sheet and at the cuts already in the spoilboard and makes sure every part has sufficient hold down area so it won’t move. If any part falls below a minimum, it gives the operator a choice, either fly cut the top before continuing or it will leave a skin on the problem part so it remains connected to other parts around it and doesn’t move. Over time this saves a ton of scrap, a lot of time and a lot of money.


Request a Consultation

Please click the "Request a Consultation" link above or give us a call at 1-800-533-6901 and we will sit down and show you how all this happens, in detail.


Thermwood Profile Modeler - from Sketch to Production

Posted by Duane Marrett on Wed, Mar 13, 2013

Tags: Thermwood, eCabinet Systems, Woodworking, CNC, Nested Base, Free, 3 Axis, Model 45, Technology, smart, wood carving, CNC Routers, software, cabinets, wood, Video, control nesting, MTR, CabinetShop, 43, Model 43, nested based, Easy, carving, SR43, SignRouter 43, CNC Router, Thermwood, save money on cnc router, QCore, SuperControl, Announcements, US made, CNC Routers, introduction, millwork, Product Information, Demonstrations, Profile Modeler

Thermwood Profile ModelerThermwood's Profile Modeler allows you to quickly create a molding or custom shape from a sketch or drawing on a Thermwood CNC Router with no special shaped tooling required.

This video demonstrates using Profile Modeler to create a custom curved cherry molding from Sketch - to Profile Modeler - to Machine - to Completed Shape.


Steps used in the video:

In eCabinet Systems:
  • Verify the measurements
  • Create the shape using Shape Manager in eCabinet Systems
  • Create Tool
  • Apply Tool to create Shape

On Thermwood QCore SuperControl:
  • File loaded into Profile Modeler on QCore SuperControl
  • Verify Tool Path
  • Run Program
  • Machining Part (Roughing/Finishing/Detail Passes)
  • No special shaped tooling required - Tools Used: 1/2 Straight, 1/2 Ballnose, 1/8 Ballnose, 1/8 Flat
  • Completed Shape

For more information on Profile Modeler or any of our other products, please click here or contact us at 1-800-533-6901.


WMS 2011 Hotel and Transportation Information from Thermwood

Posted by Duane Marrett on Fri, Aug 19, 2011

Tags: Thermwood, Woodworking, Trade Shows, Technology, CNC Automation, Canada, WMS Show, Hotel Information

Thermwood's Canadian distributor, CNC Automation, will be exhibiting at this year's WMS Show on October 27th-29th in Toronto, Canada.

We have secured room deals at the Fairmont York Royal Hotel - just steps away from the best nightlife, dining, shopping and other great venues Toronto has to offer.

There are also several great options for direct transportation to the show from the Fairmont - no need to worry about driving yourself there!

Please click the photo below or this link for more information.

WMS 2011 Hotel and Transportation Information

Thermwood offers educational discounts for CNC Router purchases

Posted by Duane Marrett on Tue, Jun 07, 2011

Tags: Thermwood, eCabinet Systems, CNC, Technology, QCore, SuperControl, education, Discount

Thermwood CNC Routers Educational Discount

Thermwood CNC Routers are used in high schools, community colleges, universities and technical training centers all around the world to help teach the technology and practical application of CNC Router programming and operation.

Thermwood QCore SuperControlNot only do students learn the basic technology but they also experience full scale, full production machining operations (assuring that they are well prepared for real-world applications).

Each machine is equipped with the powerful QCore SuperControl which gives students the most advanced automated production features available, insuring state-of-the-art training.

Thermwood also offers free copies of its eCabinet Systems software for classroom use as well as an individual copy for each student enrolled on an ongoing basis.



The Advanced Support Program assures that new features and technology are automatically added to Thermwood educational machines as they are released, pledging that students are always working with the most up-to-date technology available.

Thermwood QCore SuperControlThermwood machines and technology are ideal for training in today’s rapidly changing technical horizon.  Please visit our educational applications area for more information and examples of Thermwood CNC Routers used in education.

Click me




Thermwood and Supply Partners Donate to Habitat For Humanity

Posted by Duane Marrett on Thu, Sep 09, 2010

Tags: Announcements, Product Information, Thermwood, eCabinet Systems, Cabinet, Woodworking, CNC, Nested Base, 3 Axis, Trade Shows, Technology, CNC Routers, manufacturing, wood, QuickCut, CabinetShop, 43, Model 43, Green, CNC Router, IWF, Barb Dado, Habitat for Humanity

At the recent IWF show in Atlanta, Thermwood partnered with Hafele, Columbia Forest Products and Conestoga to build complete cabinets for Habitat for Humanity.

Thermwood demonstrated a working production cell consisting of the CabinetShop 43 CNC Router (for nested based applications) and a Fravol S2 ECO edgebander.  Attendees were able to get hands on experience using the easiest and simplest system in the industry.  Within a few seconds they selected a product to cut, modified the size and watched the machine cut their parts.  Attendees then took the parts to the edgebander to complete the process.

Complete cabinets were produced at the show from the ¾” thick, pre-finished maple plywood provided by Columbia Forest Products.  This Pure Bond plywood is sealed with AquaSEAL (a formaldehyde-free recyclable overlay conforming to the latest in green technology).

Columbia





pure bond logo







Hafele provided the hinges, slides and shelf hardware for the cabinets, and Conestoga Doors providedfinished five-piece doors and solid wood drawer fronts.

Hafele



Conestoga





Cabinet joinery was Thermwood’s new revolutionary Barb Dado joint (patent pending), which allowed the cabinets to be put together without the use of clamps or other holding methods.  The Barb Dado joint is a modified versionof the Blind Dado joint in which we machine a series of barbs in the mortise slot. When you press the parts together, the barbs bend down, bending the fibers in the wood downward firmly holding the pieces together. It is a lot harder to pull it apart than to put it together. This means you can assemble cabinets without screws, clamps or any other fasteners.

Thermwood Barb Dado

The result were beautiful, complete cabinets produced quickly, utilizing an innovative new, highly efficient manufacturing approach which results in a superior structure coupled with enhanced use of materials, all at a dramatically lower price. All cabinets produced at the IWF were donated to Habitat for Humanity.


Thermwood Streaming Live from IWF in Atlanta

Posted by Duane Marrett on Wed, Aug 25, 2010

Tags: Announcements, Product Information, Thermwood, Woodworking, CNC, Nested Base, 3 Axis, Trade Shows, Technology, edgebander, edgebanding, CNC Routers, Video, Model 43, nested based, Link, IWF, Streaming, Live, Barb Dado

We are streaming live from IWF, starting today 8/25/10. See the show without leaving your office!

Visit the Thermwood Booth from your computer at:

http://www.livestream.com/thermwoodcnc



Thermwood Streaming Live from IWF 2010

Featuring the New Barb Dado Joint:

We have a CabinetShop 43 production cell at our Booth # 5153 demonstrating the new Barb Dado Joint. This is a new development at Thermwood that we have applied for patent protection on. The joint is a modified version of the Blind Dado joint in which we machine a series of barbs in the mortise slot. When you press the parts together, the barbs bend down, bending the fibers in the wood downward firmly holding the pieces together. It is a lot harder to pull it apart than to put it together. This means you can assemble cabinets without screws, clamps or any other fasteners.

Thermwood Barb Dado Tool

This simple idea is pretty revolutionary. We have a video from another project which shows how a cabinet is assembled using the barb dado joint. You can find it at:


http://www.thermwood.com/thermwood_barb_dado_joint.htm

CNC Automation Holds Open House Event on June 10 - 11, 2010

Posted by Jason Susnjara on Thu, May 20, 2010

Tags: Announcements, Thermwood, eCabinet Systems, CNC, 3 Axis, Technology, edgebander, CNC Routers, CNC Automation, Closet, CabinetShop, nested based, Fravol, 20-20, Canada, panel processing, solid wood processing, sanders, Makor, Timesavers, Loewer, Omal, Giben

CNC Automation is holding an open house event on June 10 and 11, 2010 from 9 am to 5 pm both days at its St. Zotique, Que., headquarters.




The event marks the official launch of the company's new Canadian Solid Wood Technology Division as well as the Kentwood by Stiles program of woodworking machinery. A number of machines will be in operation during the event, including a Kentwood 6 heard moulder, a Kentwood Profile Grinder and a Kentwood Multiple Rip Saw. In addition, Stiles solid wood experts will be on hand both event days.

On the panel processing side, CNC Automation has announced it will have a complete nested based manufacturing cell in operation. The cell will consist of a Thermwood CNC router, Fravol & Lange edgebanders (straight and contour), Omal dowel drilling and inserting machine as well as a Giben computerized panel saw.

The open house will also feature finishing solutions in operation including Timesavers Wide Belt sanders, Loewer profile and moulding finishing sanders as well as a Makor surface staining and coating machine.

Representatives from hardware, software, tooling and dust collector manufacturers will also be on hand to address application questions.

For more information, visit cncautomation.com
